How to run a C sample code nRF9160 Board?

Prerequisite

• Install for nRF9160 nRF SDK with 2.5.0 version will come along with modem firmware version 1.3.5 and complete Getting Started with nRF9160 DK.
  – Reference link to install
• Install the latest Visual Studio code along with nrf connect extensions to run the application.

Installation

• For making new application, create a folder in nrf-sample folder and name is “IoTConnect” where you installed nRFConnet SDK.
  • Path to create folder : e.g.(C:\nordic\v2.5.0\nrf\samples\).
• Now unzip the “iotconnect-C-sdk-nRF-3.1.zip” SDK which you have downloaded from our IoTConnect help portal.
• We have “IoTConnect_config.h” file in nRF9160-DK\src with “main.c”(You can download this firmware file from above sample code).
  • You need to input “uniqueId”, “CPID” and “env” in IoTConnect_config.h file. You can see more in below section title with “Prerequisite input data”

• In the other folder “nRF9160-DK\IoTConnect\cert” we have a “certificate.h” in here you have to put your device certificate

#define CLOUD_CLIENT_PRIVATE_KEY \
"-----BEGIN RSA PRIVATE KEY-----\n"
----------------------------------
----------------------------------
"-----END RSA PRIVATE KEY-----\n"

#define CLOUD_CLIENT_PUBLIC_CERTIFICATE \
"-----BEGIN CERTIFICATE-----\n"
----------------------------------
----------------------------------
"-----END CERTIFICATE-----\n"

#define CLOUD_CA_CERTIFICATE \
"-----BEGIN CERTIFICATE-----\n" \
----------------------------------
----------------------------------
"-----END CERTIFICATE-----\n"

Usage:

To initialize the SDK object need to import below sdk package

#include "IoTConnect_Config.h"
#include "main.h"

Prerequisite input data

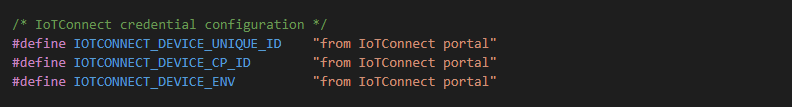

#define  IOTCONNECT_DEVICE_CP_ID        "yourCpid"
#define  IOTCONNECT_DEVICE_UNIQUE_ID    "yourUniqueID"
#define  IOTCONNECT_DEVICE_ENV          IoTConnectENV"

• IOTCONNECT_DEVICE_UNIQUE_ID : Its device ID which register on IotConnect platform and also its status has Active and Acquired.
• IOTCONNECT_DEVICE_CP_ID : It is the company code. It gets from the IoTConnect UI portal “Settings->Key Vault”.
• IOTCONNECT_DEVICE_ENV : It is the UI platform environment. It gets from the IoTConnect UI portal “Settings->Key Vault”.

To Initialize the SDK object and connect to the cloud

IoTConnect_init(IOTCONNECT_DEVICE_CP_ID, IOTCONNECT_DEVICE_UNIQUE_ID, IOTCONNECT_DEVICE_ENV, Device_CallBack, Twin_CallBack);

To Connect mqtt client with IoTConnect

IoTConnect_connect();

To receive the command from Cloud to Device(C2D)

void DeviceCallback(char *payload){
	printk("\n Cmd_msg >>  %s",payload);
	if(payload.cmdType == "0x01")
		// Device Command
	if(payload.cmdType == "0x02")
		// Firmware Command
	if(payload.cmdType == "0x16")
		// Device connection status
}

This is the standard data input format for  non Gateway device to send the data on IoTConnect cloud(D2C)

// Example For Non Gateway Device
String Attribute_json_Data = [{
	"uniqueId": "<< Device UniqueId >>",
	"time" : "<< date >>",
	"data": {}
}];
SendData(Attribute_json_Data);

• time : Date format should be as defined # “2021-01-24T10:06:17.857Z”
• data : JSON data type format # {“temperature”: 15.55, “gyroscope” : { ‘x’ : -1.2 }}

To send the command acknowledgment from device to cloud.

Ack_Json=cJSON_CreateObject();
	cJSON_AddStringToObject(Ack_Json, "ackId", cmd_ackID);
	cJSON_AddStringToObject(Ack_Json, "msg", "");
	cJSON_AddNumberToObject(Ack_Json, "st", Status);
	char *Ack_Json_Data = cJSON_Print(Ack_Json);

    int msgType = ""; // 5 ("0x01" device command), 11 ("0x02" Firmware OTA command)
    SendAck(Ack_Json_Data, msgType);

• ackId(*) : Command Acknowledgment GUID which will receive from command payload
  (data.ackId)
• st(*) : Acknowledgment status sent to cloud
  4 = Fail
  6 = Device command[0x01]
  7 = Firmware OTA command[0x02])
• msg : It is used to send your custom message
• msgType : Message type
  5 = Device command[0x01]
  11 = Firmware OTA command[0x02]

To receive the twin from Cloud to Device(C2D)

void Twin_CallBack(char *payload){
	printk("\n Twin_msg payload is >>  %s", payload);
}

To update the Twins reported property

UpdateTwin(key,value);

• key : Desired property key received from Twin callback message
• value : Value of the respective desired property

Get all the Twin property from the cloud to your device.

GetAllTwins();

To disconnect the device from IoTConnect cloud

IoTConnect_abort();
